Revolutionary Cable Management for Structured Cabling Networks Our unique cable management system for structured cabling networks can save you thousands of dollars, space, and time. If you’re tired of trying to stuff unnecessary expensive patch cables into a routing duct, then welcome to a neat, simple and cost effective solution. NEAT-PATCH has the recipe for the perfect computer cabling network or any rack mounted interconnect system that can be custom designed to fit your needs and most importantly your budget.
Cables Belong Inside The Rack (click to enlarge)	Looks Too Good To Cover! (click to enlarge)	Can Your Cable Manager Do This? (click to enlarge)

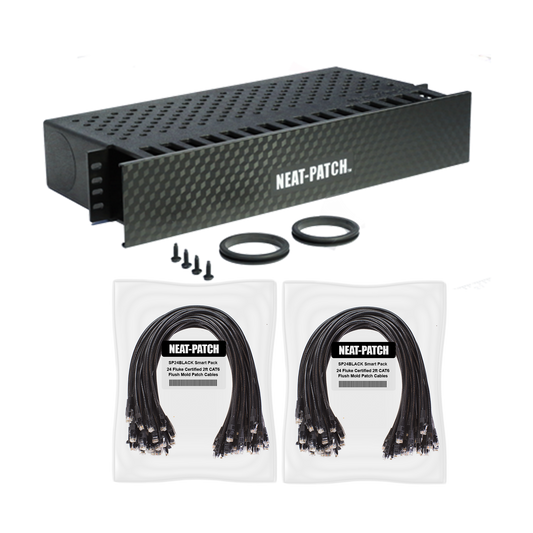

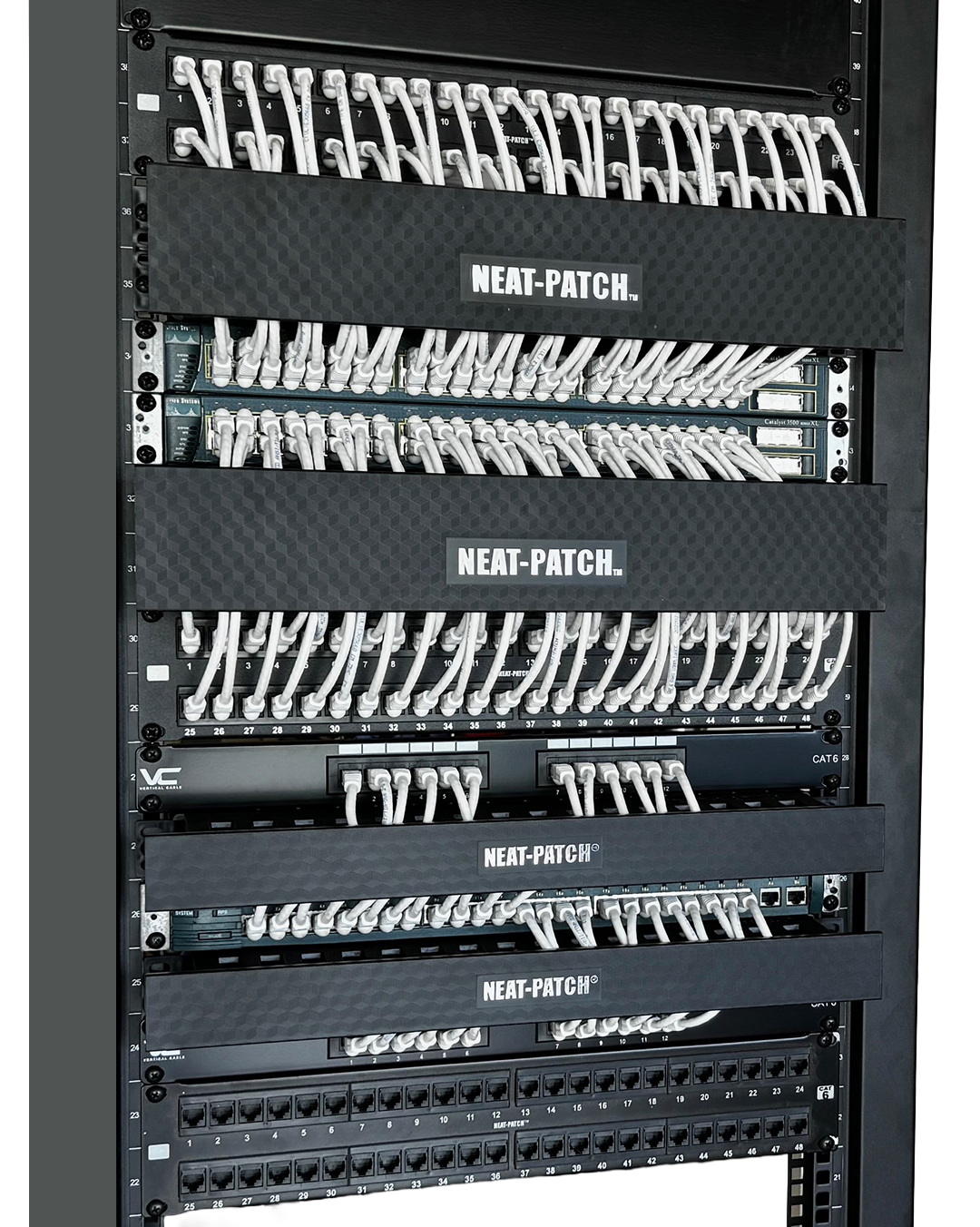

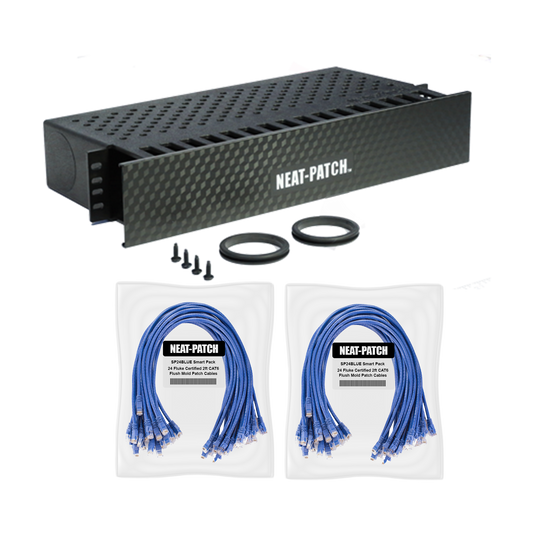

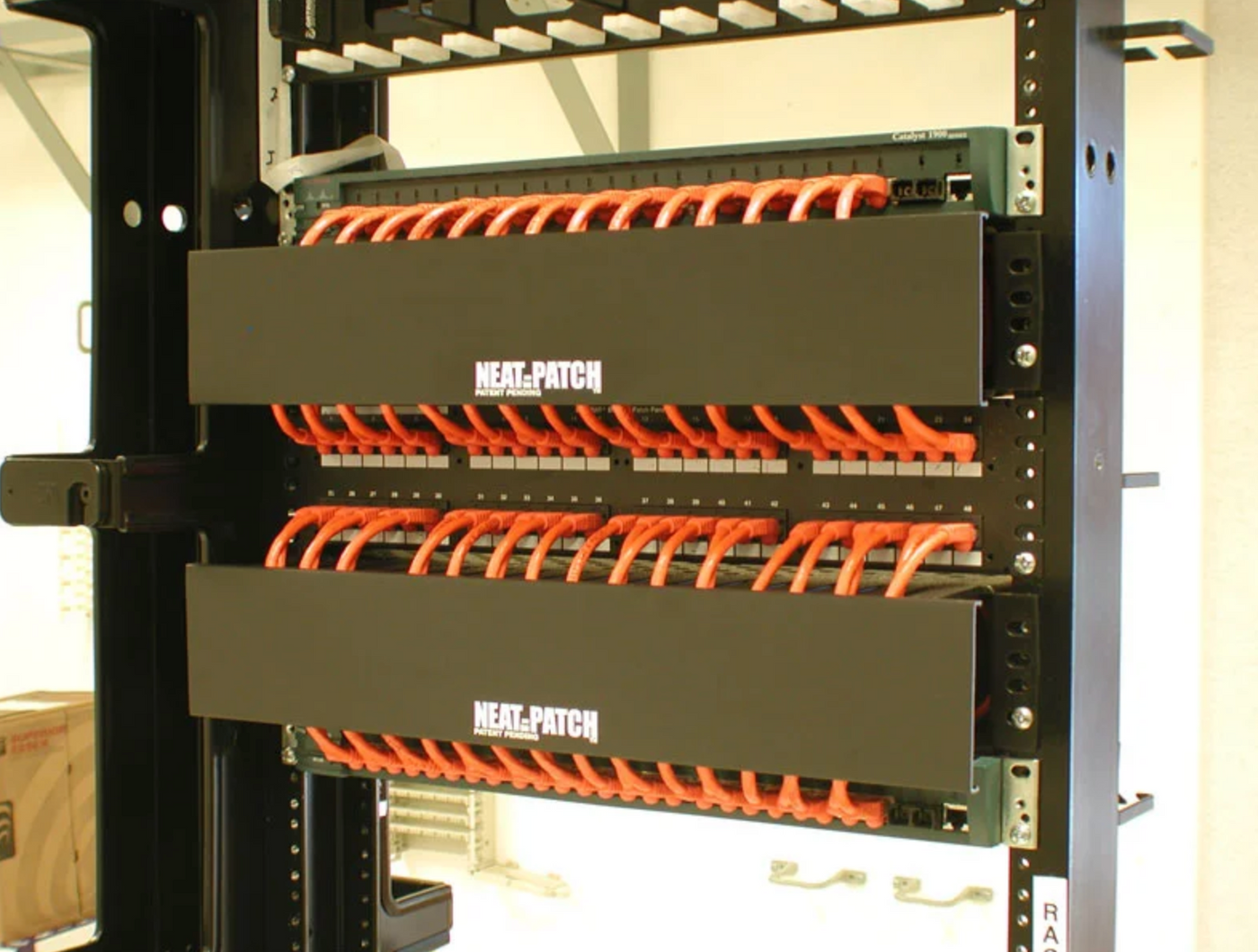

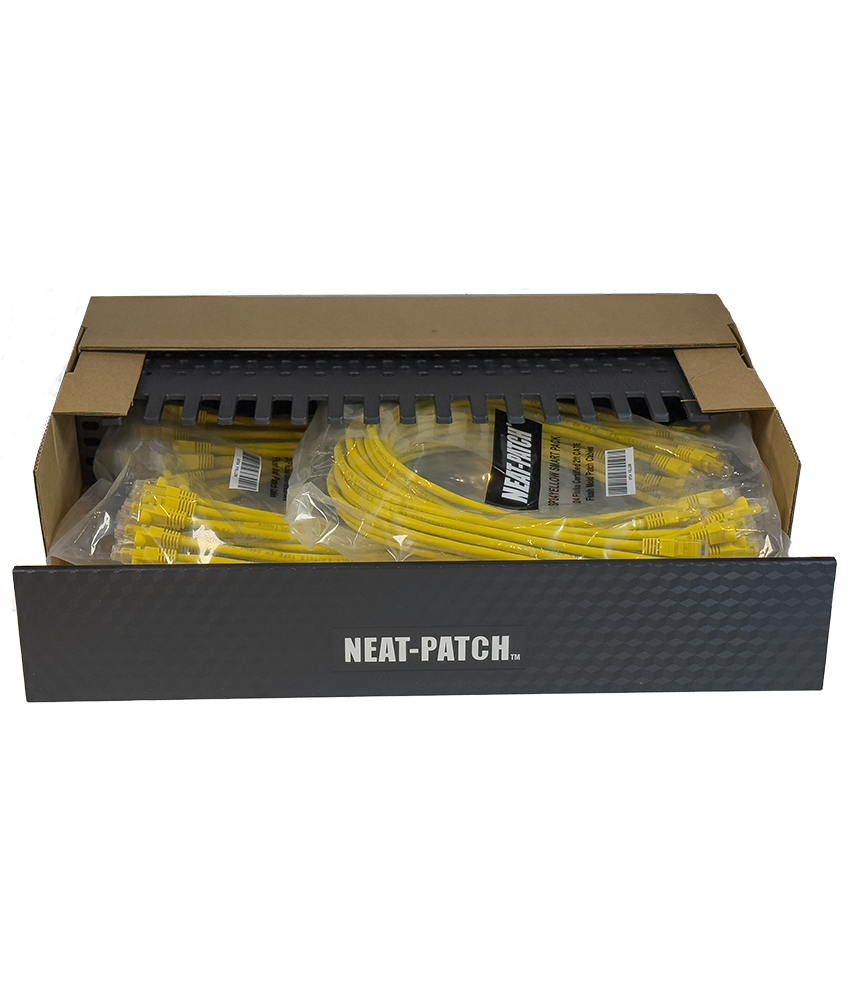

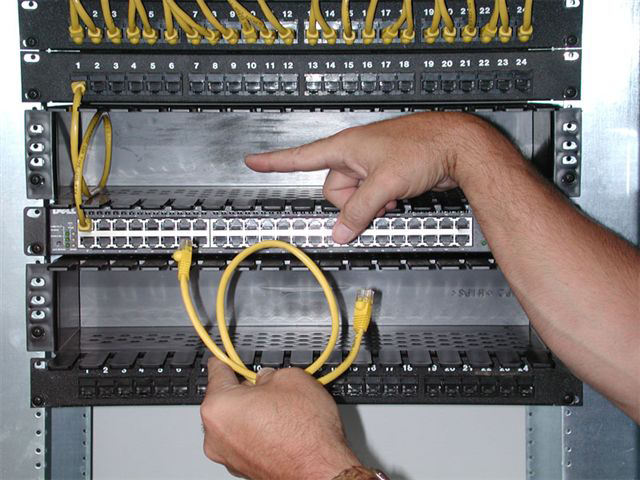

The combination of a Fluke Certified 2ft CAT6 patch cable and a deep pocket cable storage manager is all you need to take advantage of the numbers game on the front of the rack for a superior network design. Rear cable management is now relocated to the rear of the patch panel and that provides the real estate necessary for the IT administrator to properly store patch cable inside the rack using single coil circuits which for the first time are bend radius compliant for optimal bandwidth. The NP2K648 is what you see here. 48 single coils neatly stored inside the rack for a savings of up to $3,000.00 over every other solution. This is real cable management. Front and rear.
Bend Radius Means Bandwidth (click to enlarge)	96 Workstations in 10 Rack Spaces (click to enlarge)	Network Design for The Future (click to enlarge)

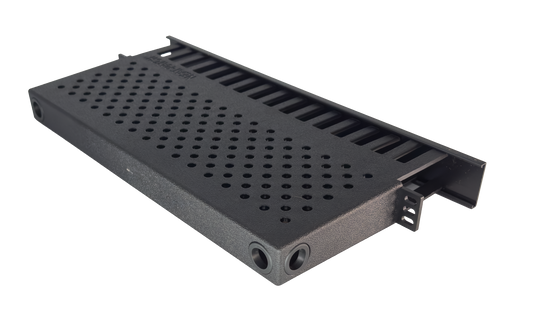

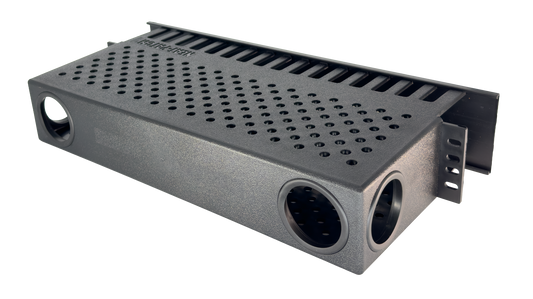

Rear Management Where It Belongs (click to enlarge)	Smooth Bend Radius in Rear (click to enlarge)	Smooth Clean Rear Management (click to enlarge)

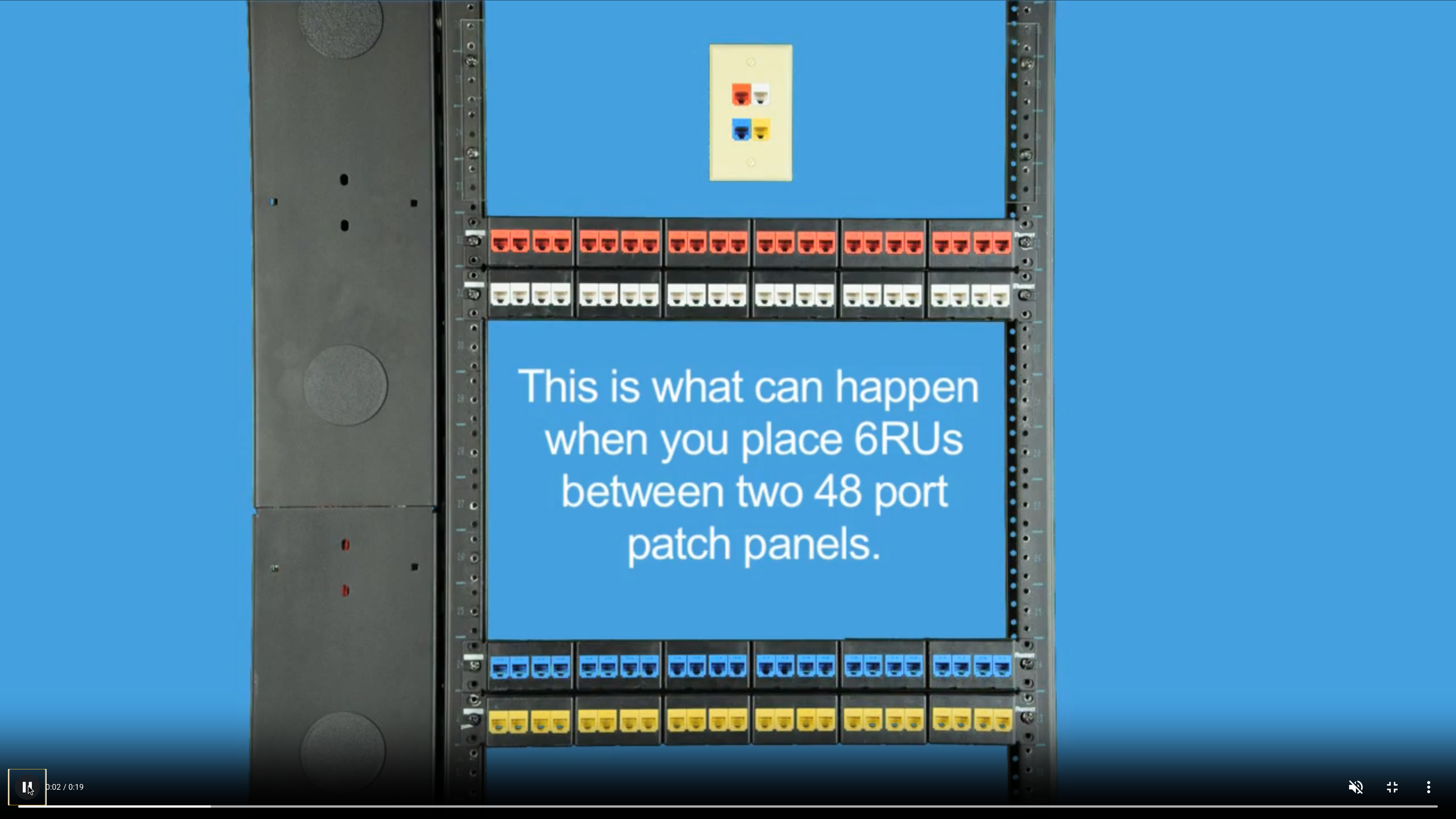

Traditional rear management is located on the backside of the front manager above and below the patch panel and traditionally, occupying 6RU's to dress in a 2RU patch panel. The cable installer cuts the horizontal cabling to length when terminating a patch panel, so it doesn't make sense to unnecessarily waste all that rack space when it is the IT manager on the front side who has the problem. There is plenty of room behind the patch panel in its own rack space for dress-in as shown in the photos. The IT manager has excess rack cable to deal with, the cable installer doesn't. Neat-Patch gives back 4RU's to the IT manager, so his front manager has plenty of storage inside the rack. With 2 and a half times the amount of horizontal storage than any other cable manager on the market, you can now standardize on a uniform length of cable that will provide uniform results. You do the math. Your rack is 19" wide. A 24 inch patch cable will reach anywhere between the components and you'll never have more than a single coil of excess cable which provides unsurpassed bend radius protection. The end result is a perfectly balanced network cabling system that is mathematically guaranteed to prevent the necessity of anything longer than a 2ft network patch cable. A shorter 1ft cable limits your ability to make the connection. A longer 3ft cable and you begin the problem by adding 1ft of excess multiplied by the number of cables. Our concept is "the shorter the patch cable, the more control you have over it. So simple, yet so profound! Our kits contain everything you need for these results in one very smart package.

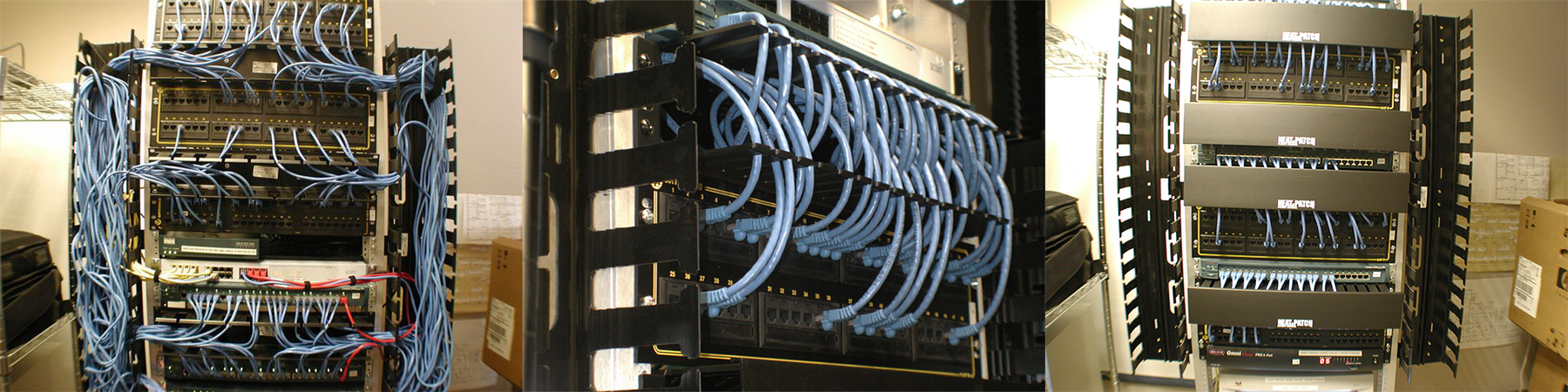

Bad Cable "Manage"ment Promotes Bad Network Design

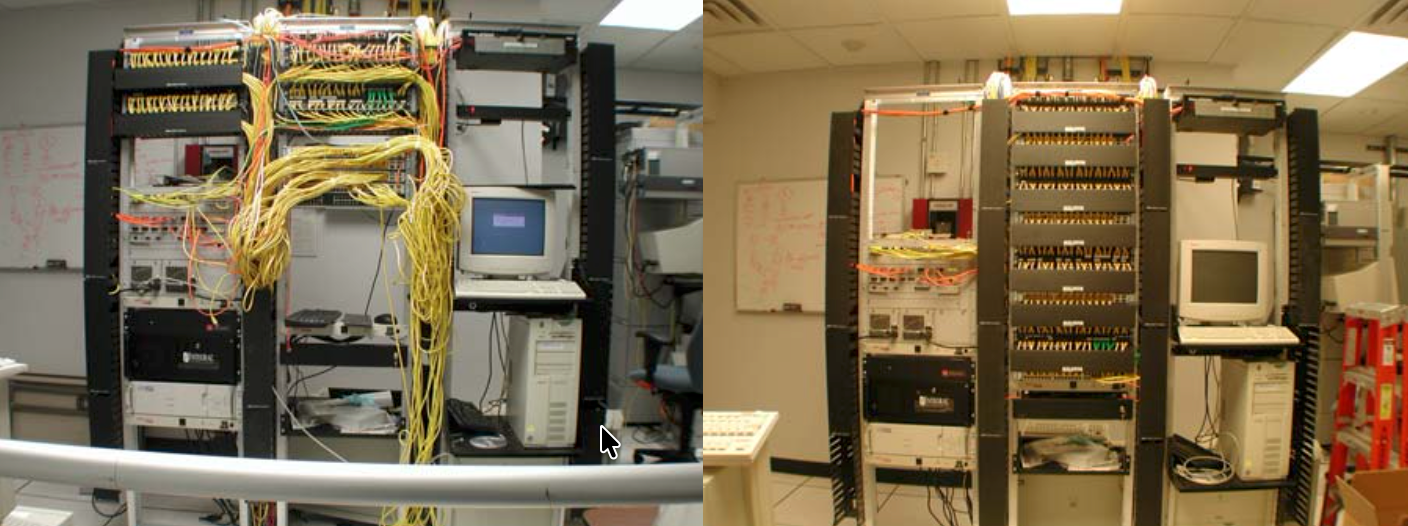

¹man·age - "to handle or direct with a degree of skill", "to make and keep compliant", "to succeed in accomplishing" This is the definition of the word "manage" according to Merriam Webster. The 3 before photos of the networks below represent 95% of the LAN's all over the world today. When you look at these photos, does the word "managed" come to mind? These solutions do manage to consume a lot of money, in fact the 10ft patch cable is the single most common network component sold in all of telecommunications. Typically, we buy two 10ft patch cables for every computer on almost every large LAN in the world. At over $1.00 per ft, the patch cable business is also the one of the most lucrative businesses in all of telecommunications, but they are seldom "managed". They're out of control, covered or not.

When you look at our Neat-Patch photos, you will see networks that are "managed". You'll see 48 single coil circuits per kit neatly "managed" inside the rack rails allowing up to 384 single coil circuits in a 7ft rack and still leaving room for a fiber panel and rack mount UPS's. You can trace any one of those 384 circuits in less than a second. You can remove and replace a circuit easily. We'll show you a 2ft data cabinet with 96 "managed" workstations with not one cable out of place and with 2U left over for your UPS and Fiber drawer. Who can even imagine that, let alone do it? We can. "managed" networks are compliant. They put you in control, and it just so happens that we can literally save you thousands of dollars. See the comparison results below.

PANDUIT / 10ft patch cables

(Click for Details)

Neat-Patch - 40% of the price of PANDUIT

LEVITON /10ft patch cables

(Click for Details)

Neat-Patch - 58% of the price of LEVITON

Cabinet / 7ft patch cables

(Click for Details)

Neat-Patch - 70% of the price of cables alone

In each instance, not only did we create a neat, "managed" network, but we saved the end user substantial amounts of time, frustration and money. We can finish a beautiful network in less times than it takes you to unpackage the competition's cables.

We own the patents to the world's neatest networks!

Save half of your cable management budget and build a simple, neat, organized network!

Download our Cabling Guide and we'll help!

Where do you find Neat-Patch Products?

Click Here

Call us at (270) 839-6644 for a distributor near you!

(8:00AM - 5:00PM PT)
or
Send an inquiry to sales@neatpatch.com

Organization is everything.

It's about common sense.
It's about a cable manager that can actually manage cable.
It's about smarter cable packaging for less waste and more productivity.
It's about a cabling guide and LAN design support that makes it easy.
It's about cables and storage manager in one very sensibly priced kit.

Up for a Challenge?

Try installing a complete 384 workstation network in a 7ft rack using any other cable management system. A completely patched network with front and rear management, 384 single bagged cables with 768 wire ties, patch panels, switches, fiber tray, and a rack mount UPS in one 7ft rack. Then compare your results to Neat-Patch based on:

Neatness
Organization
Bend Radius Compliance
Time to Completion
Manageability
Overall Price

We've done this many times in the past and smoked the competition. We'll be happy to compete in a network building contest with anyone, just name the stakes. We'll be done while they're still unpackaging cables. At the same time we'll have saved you over half of your cable management budget. That's just how good this solution is and how confident we are in competition.

(Click for Details)

The Market Leaders

Well, in reality, they just can't do it. As soon as they fill their troughs with all that wasted copper, they're done. Then try to trace down a cable. The only thing they'll clean up on is your cable management budget.

Want proof? Price the above market leader's solution through any distributor in the country. We did and these were the results! Their total cost? $4,470.30!

There's over $3600.00 just in patch cables alone! Why would anyone spend that much money for results like these?

Neat-Patch

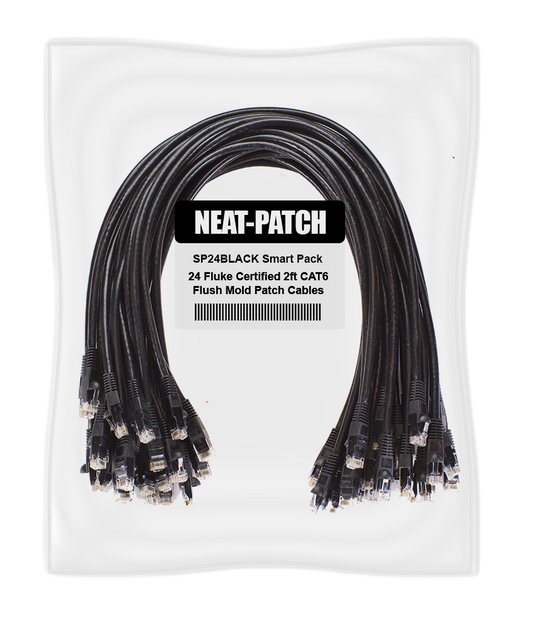

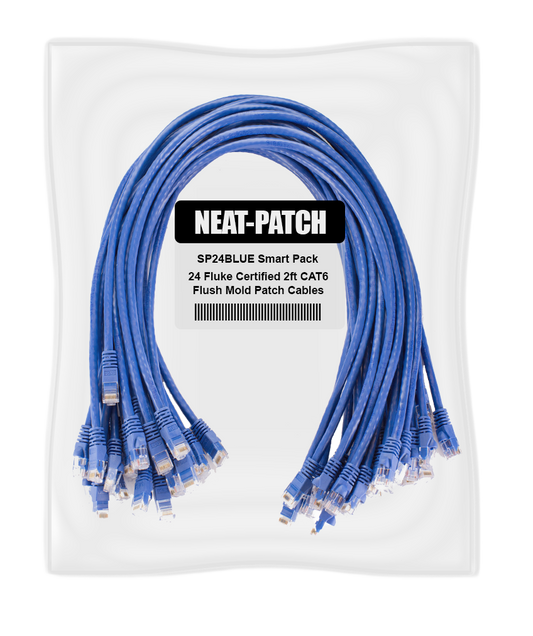

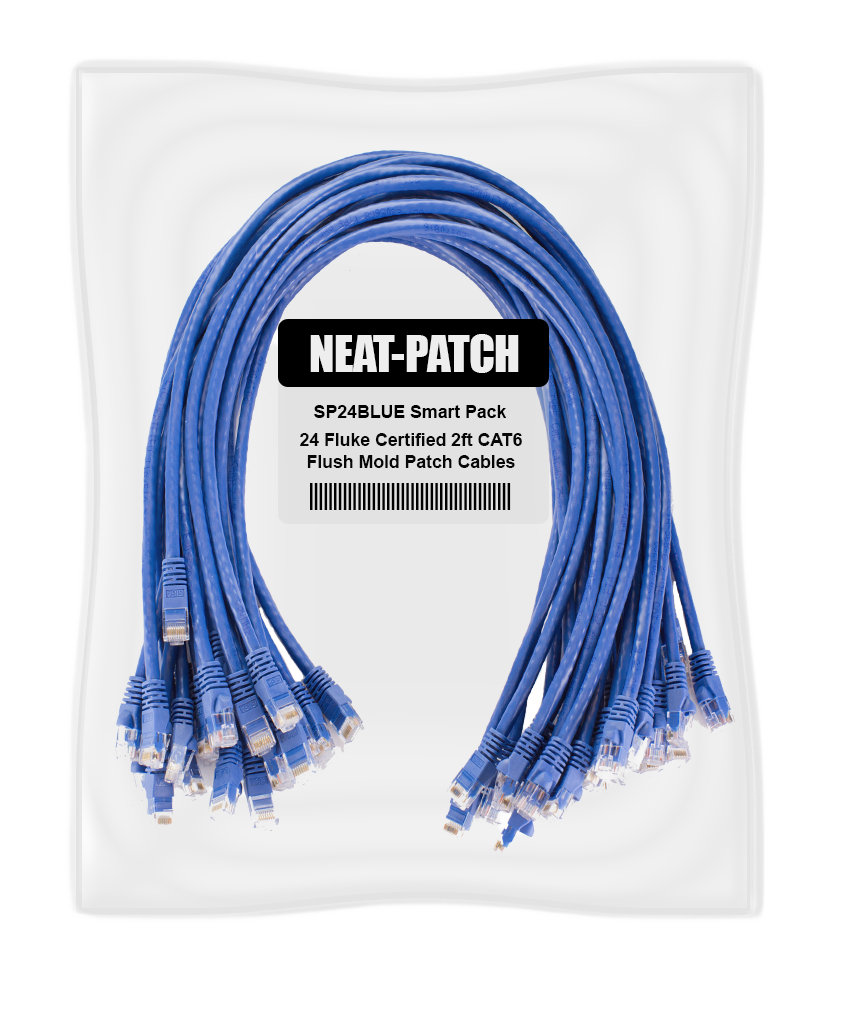

No tricks or gimmicks, just the right amount of storage between the rack rails and a much less expensive high quality Fluke Certified CAT6 patch cable. No single bags or wire ties. Our SMART PACK cables let you start patching now. 8 simple kits replaces all the unnecessary parts the competition would love to sell you for a disaster. We even left room for a 1U fiber drawer and a 4U rack mount UPS. We also left over $2,800.00 of your cable management budget in your pocket. Note, that's the minimum price difference, The Neat-Patch pricing was retail, the competitor pricing was not. Through most of our distributors, you'll save another $200.00.

Total Cost? Under $1600 (MSRP) for unprecedented neatness and organization.

If you want to waste thousands of dollars more for a mess, that's your business.

If you want to save thousands of dollars for a neat, organized, bend radius compliant network, that's our business!

But the real question is, can you do this with any other cable management? It's, OK we already know the answer.

Have you ever seen 96 workstations in a 2ft data cabinet?

It's never been done before! Data cabinets are the worst at providing cable management, but with Neat-Patch it's easy! We even left room for a fiber panel and a rack mount UPS! We are the network real estate agents!

We challenge any competitor to a network building contest!

That's right! For over 30 years our competitors have been covering up messes, only Neat-Patch has eliminated them. This is real cable management designed to take care of the IT manager and it took an experienced cabling contractor to find a sensible cure for this worldwide epidemic. Who came up with the lame rack layouts we currently use? It certainly wasn't someone who had to use them. From a wall-mount bracket to a 5,000 user data room, Neat-Patch is the answer. Our common sense Cabling Guide will teach you step-by-step how to cable your data rack based on the switching equipment you are using. Even chassis switches while being a major contributor to the problem can find relief, although we wouldn't recommend a chassis if you don't already own one. High density switches are famous for two problems. They don't allow cable management, and the center blades are famous for failing due to the inability to dissipate heat. A fact's a fact. Chassis manufacturers don't provide nor care about cable management, because they don't have to deal with it. Stand alone switches with fiber uplinks is a sensible combatant against patch cable horrors, allowing the proper spacing to incorporate cable management. Using the Neat-Patch concept, the only use for vertical management is to bring horizontal cabling in and to route the fiber links between switches. Even those who oppose this view cannot deny what they see on this website. This is what every IT manager wants and it's very easy to get there and save serious money. The NP2K648 (forty-eight Fluke Certified 2 foot CAT6 patch cables and deep pocket cable manager) is guaranteed to give you the results you see here when installed according to the downloadable Cabling Guide . If you're tired of fighting patch cables, we've got your solution.

The Neat-Patch Guarantee

Our competitors offer 25 year warranties on their integrated solutions. Why? Because they know that once the cabling is tested, those passive components won't just sit there and go bad. They also know that in 25 years, you won't be using this technology anyway. But the biggest reason they offer you a huge 25 year warranty is because they want you to buy their long expensive patch cables. Patch cable sales make up about 30% of their profit. If you don't buy their patch cables, they won't honor their useless warranty. They'll throw warnings at you about "impedance mismatch". The fact is that impedance is one of the parameters of a quality CAT6 certification test. All CAT6 products must pass the same impedance test. That's why we publish the test results of our cables in our Cabling Guide. That's also why we will honor any manufacturer's warranty as long as you provide us with the certification test results of your cabling. Guaranteed. Our solution will only enhance the performance of your LAN by maintaining bend radius for optimal bandwidth. That's something our competitors can't give you. Neat-Patch is the perfect compliment to any integrated solution at a cost savings you can't afford to lose.
